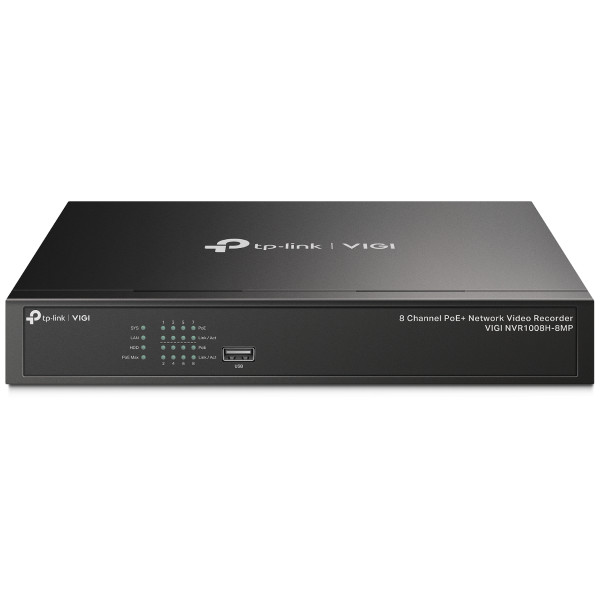

TP-link NVR rögzítő - NVR1008H-8MP (8 csatorna, 8 PoE+ port; H265+, 8MP, HDMI, VGA, 2xUSB, 1x Sata(max10TB), audio)

110 690 Ft

TP-link NVR rögzítő - NVR1008H-8MP (8 csatorna, 8 PoE+ port; H265+, 8MP, HDMI, VGA, 2xUSB, 1x Sata(max10TB), audio)

Raktáron

110 690 Ft

GYÁRTÓ:

TP-LINK

A vásárlás után járó pontok: 5 535 Ft

Részletek

Video and Audio
IP Video Input	8-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4/6/8
DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	8-Channel
Capability	2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
Record Management
Record Mode	• Manual Recording
	• Scheduling Recording
	• Motion Detection Recording
Playback Mode	• Instant Playback
	• Regular Playback
	• Tag Playback
	• Event Playback
Backup Mode	• Regular Backup
Backup Mode	• Video Clip Backup
Playback Function	• Play
	• Pause
	• Stop
	• Fast Forward
	• Fast Backward
	• Play By Frame
	• Full Screen
	• Video Clip
	• Export Clip
	• Digital Zoom
	• Lock Recording
	• Audio On/Off
Hálózat
Szabvány	UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI
External Interface
Network Interface	1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0
Audio Interface	1, Audio In; 1, Audio Out
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	N/A
HDMI	1
VGA	1
HARD DISK
SATA	1 SATA Interface
Capacity	Up to 10 TB Capacity for Each HDD
PoE
Standard	802.3at/af Compliant
Interface	1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget	113 W Available for All PoE+ Ports, 30 W Max per Port
Capacity	1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
Alarm
General Alarm	• Motion Detection
	• Video Tampering
	• Line-Crossing Detection
	• Intrusion Detection
	• Region Entering Detection
	• Region Exiting Detection
	• Object Abandoned/Removal Detection
	• Vehicle Detection
	• Human Detection
	• Smart Frame
Anomaly Alarm	• Video Loss
	• Offline and IP Conflict
	• Disk Exception
	• Login Exception
Alarm Linkage	• Recording
	• White Light Alarm
	• Buzzer
	• Log
	• Audible Alarm
Általános
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Csomagolás tartalma	• VIGI Network Video Recorder
	• Power Adapter
	• HDD Screws
	• Mouse
	• Quick Installation Guide
Working Temperature	• NVR: -10–55 °C
Working Temperature	• Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Méretek (Sz x Mé x Ma)	294 × 180 × 44 mm
Net Weight	1.12 Kg
Gross Weight	2.2 Kg
Power Supply	53.5V DC/2.43 A
Power Consumption	• 2.38 W (Without Disk)
Power Consumption	• 12.94 W (With Disk)
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Adatok

Gyártói cikkszám:

VIGI NVR1008H-8MP

USB 2.0:

Garancia:

48 hónap

Max. LAN sebesség:

100

Tömörítés:

H265+/H265/H264+/H264

Max rögzíthető csatornák száma:

Max rögzíthető IP kamera felbontás:

8MP

Max. merevlemezek száma:

Max. HDD kapacitás portonként:

10000

HDD csatolófelület:

SATA

LAN csatlakozó szám:

Onvif támogatás:

Van

Tömeg:

578 g/db
