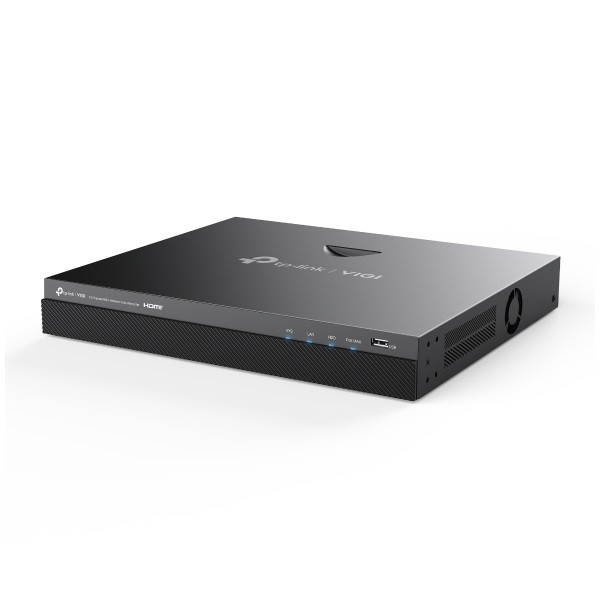

TP-link NVR rögzítő - NVR2016H-16P (16 csatorna, 16 PoE+ port 90W; H265+, 8MP, HDMI, VGA, 2xUSB, 2xSata, audio)

164 990 Ft

TP-link NVR rögzítő - NVR2016H-16P (16 csatorna, 16 PoE+ port 90W; H265+, 8MP, HDMI, VGA, 2xUSB, 2xSata, audio)

Raktáron

164 990 Ft

GYÁRTÓ:

TP-LINK

A vásárlás után járó pontok: 8 250 Ft

Részletek

Video and Audio
IP Video Input	16-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4/6/8/9/16
DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
	2CIF/CIF/QCIF
Synchronous Playback	16-Channel
Capability	25fps:
	2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

	30fps:
	4-ch @ 3MP, 2-ch @ 5MP
Record Management
Record Mode	Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode	Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode	Regular Backup, Video Clip Backup
Playback Function	Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
	Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Hálózat
Szabvány	UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI
External Interface
Network Interface	1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface	1, Audio In; 1, Audio Out
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	1
VGA	1
HARD DISK
SATA	2 SATA Interfaces
Capacity	Up to 10 TB Capacity for Each HDD
PoE
Standard	802.3at/af Compliant
Interface	1- 16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget	90 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm	Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
Anomaly Alarm	Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage	Recording, White Light Alarm, Buzzer, Log, Audible Alarm
Általános
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Csomagolás tartalma	VIGI Network Video Recorder
	Power Adapter
	Power Cables
	HDD Power Cables
	HDD Data Cables
	Mounting Accessories
	Mouse
	Quick Installation Guide
Working Temperature	NVR: -10–55 °C
	Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Méretek (Sz x Mé x Ma)	330 × 285 × 45 mm
Net Weight	1.9 Kg
Gross Weight	3.2 Kg
Power Supply	53.5V DC/2.43A
Power Consumption	6.2 W (Without Disk)
	40 W (With Disk)
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Adatok

Gyártói cikkszám:

VIGI NVR2016H-16P

USB 2.0:

Garancia:

48 hónap

Max. LAN sebesség:

1000

Tömörítés:

H265+/H265/H264+/H264

Max rögzíthető csatornák száma:

Max rögzíthető IP kamera felbontás:

8MP

Video kimenetek típusa:

1x VGA + 1x HDMI

Max. merevlemezek száma:

Max. HDD kapacitás portonként:

10000

HDD csatolófelület:

SATA

LAN csatlakozó szám:

Tömeg:

578 g/db
