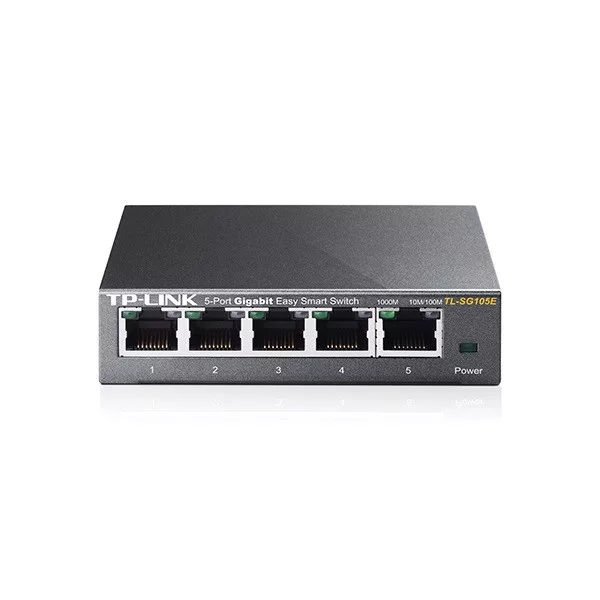

TP-Link Switch Unmanaged Pro - TL-SG105E JetStream™ (Easy Smart, 5 port, 1000Mbps)

Részletek

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface	5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Dimensions (W X D X H)	3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)
Power Supply	100-240VAC, 50/60Hz

PERFORMANCE
MAC Address Table	8K
Packet Buffer Memory	2Mb
Packet Forwarding Rate	7.4Mpps
Jumbo Frame	16KB

SOFTWARE FEATURES
Quality of Service	Support Port Based/802.1p Based priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Transmission Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SG105E Power Cord Installation Guide Resource CD Rubber Feet
System Requirements	Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Adatok

Gyártói cikkszám:

TL-SG105E

LAN:

5

Garancia:

60 hónap

Max. LAN sebesség:

1000

Rackbe szerelhető:

Nincs

Tömeg:

450 g/db
