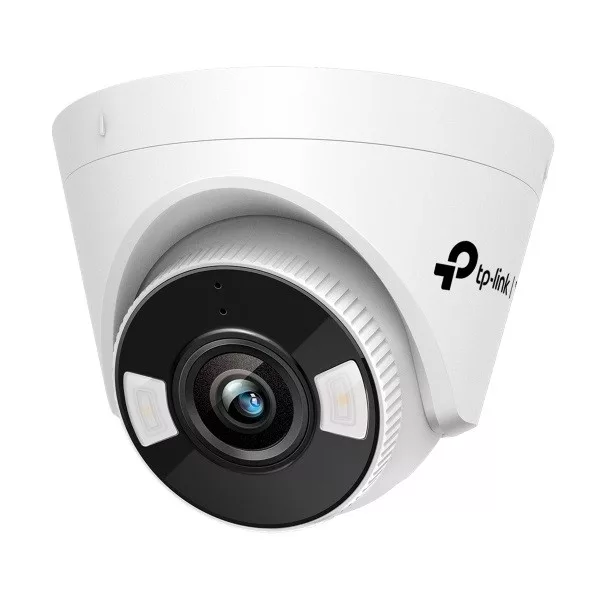

TP-Link IP turretkamera WiFi - C440-W (FullColor, 4MP, 4mm, H265+, fehér LED30m, IR30m, PoE/12VDC)

41 890 Ft

TP-Link IP turretkamera WiFi - C440-W (FullColor, 4MP, 4mm, H265+, fehér LED30m, IR30m, PoE/12VDC)

Raktáron

41 890 Ft

GYÁRTÓ:

TP-LINK

TÍPUS:

Turret

A vásárlás után járó pontok: 2 095 Ft

Részletek

Kamera
Képérzékelő	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	2.8 mm: F1.6
Aperture	4 mm: F1.6
Optika	Fixed focal lens (4 mm)
Lens Mount	M12
Min. szükséges megvilágítás	0 lux with IR/white Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Digital Noise Reduction	3D DNR
WDR	DWDR
IR Working Distance	30m
Forgatási/döntési szög	Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Illumination Distance	30m
Látószög	(2.8 mm) Horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 122°
Látószög	(4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°
LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
Lens Mount	M12
DORI Distance	Detect: 80 m (262 ft)
	Observe: 33 m (109 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	Pan: 0° to 360°
	Tilt: 0° to 85°
	Rotate: 0° to 360°
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 2
White LED	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2560 X 1440
Main Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution: 640x480, 352x288, 320x240
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Video Compression	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 3 Mbps
Video Bit Rate	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
Image Settings	White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Hang
Hangkommunikáció	Two-Way Audio
Hangbemenet	Yes
Hangkimenet	Yes
Hangtömörítés	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Hálózat
Szabvány	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wireless Rate	11 Mbps (802.11b)
	54 Mbps (802.11g)
	150 Mbps (802.11n)
Wireless Security	WPA/WPA2-PSK
ONVIF	Yes
API	ONVIF
Simultaneous Live View	4 Main Streams & 3 Sub-Streams,
Simultaneous Live View	or 3 Main Streams & 5 Sub-Streams
Web Browser	Google Chrome® 57 and above
	Firefox® 52 and above
	Safari® 11 and above
	Microsoft® Edge 91 and above
Cloud	Yes
Biztonság	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Frequency	2.4 GHz
Vezeték nélküli
WiFi Channels	13.jan
Frekvencia	2.4 GHz
Sugárzási teljesítmény	High
Auto Wireless Channel	N/A
Wireless Statistics	N/A
Throughput Monitoring	N/A
Radio Bandwidth	Auto: N/A
	20M: Yes
	40M: Yes
Wireless Rate	11Mbps(802.11b)
	54Mbps(802.11g)
	150/300Mbps(802.11n)
Wireless Security	PWPA/WPA2-PSK
Wireless Mode	AP, AP Client
Figyelmeztetési és eseménykezelési vezérlés
Smart Event	Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Fizikai kezelőfelület
Hálózati csatlakozás	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Gomb	-
Slot	Micro SD card
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Általános
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Tömeg	195 g
Csomagolás tartalma	VIGI Network Camera
	Quick Start Guide
	Screws and Anchors
	Mounting Template
Méret (Ma x Sz x Mé)	123 × 123 × 84 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements	12V DC ± 5%, 5.5mm Coaxial Power Plug
Net Weight	0.24 Kg
Gross Weight	0.53 Kg
Power Consumption	12V DC: Max 7W
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
Antenna	Quantity: 2
	Type: 2.4GHz Welded Dipole Omni-Directional Antenna
	Gain: 2.0dBi
Protection	N/A
Product Dimensions (L x W x H)	123× 83× 123 mm
Certifications	CE, FCC, RCM, BSMI, VCCI, RoHS
Videó/Kép
Videó tömörítés	Main stream: H.265/H.264
Videó tömörítés	Sub-Stream: H.265/H.264
Kép frissítés (frame) és felbontás	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Kép frissítés (frame) és felbontás	Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240
Képbeállítás	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	64 Kbps to 6 Mbps
SMART FEATURE-SET
Smart Event	Area Intrusion Detection, Line-Crossing Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

Adatok

Gyártói cikkszám:

VIGI C440-W(4MM)

Garancia:

36 hónap

Kültéri kivitel:

Nincs

Lencse:

Beépített Infra led:

Van

IP kamera felbontás:

4MP

Tömörítés:

H265+, H265, H264+, H264

Kapcsolat típusa:

Vezeték nélküli

H264+:

Van

H265:

Van

H265+:

Van

Beépített LED fény:

Van

Max. IR távolság:

Tömeg:

520 g/db
