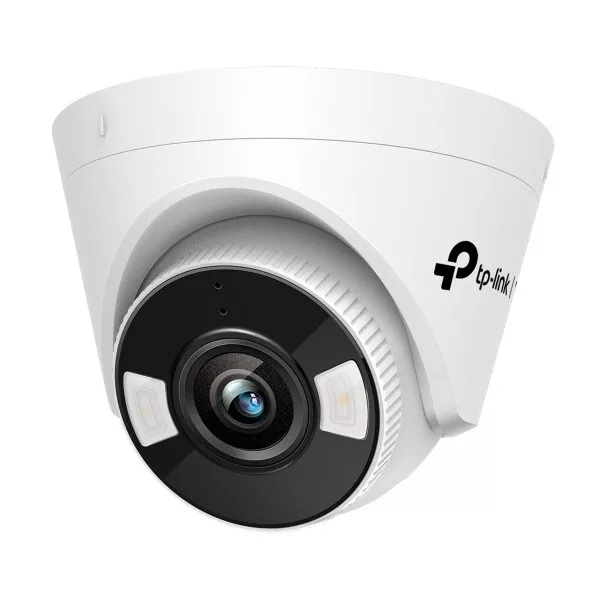

TP-Link IP turretkamera - C440 (FullColor, 4MP, 4mm, H265+, fehér LED30m, IR30m, PoE/12VDC)

36 190 Ft

TP-Link IP turretkamera - C440 (FullColor, 4MP, 4mm, H265+, fehér LED30m, IR30m, PoE/12VDC)

Raktáron

36 190 Ft

GYÁRTÓ:

TP-LINK

TÍPUS:

Turret

A vásárlás után járó pontok: 1 810 Ft

Részletek

Kamera
Képérzékelő	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	2.8 mm: F1.6
Aperture	4 mm: F1.6
Optika	4 mm
Lens Mount	M12
Min. szükséges megvilágítás	Color: 0.04 Lux@F1.6; 0 Lux with IR
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Digital Noise Reduction	3D DNR
WDR	DWDR
IR Working Distance	30m
Forgatási/döntési szög	Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Illumination Distance	30m (LED)
Látószög	(2.8 mm) Horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 122°
Látószög	(4 mm) Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°
LENS
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	2.8 mm: F1.6
Aperture	4 mm: F1.6
FOV	2.8mm:
	Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
	4mm:
	Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Lens Mount	M12
DORI Distance	2.8 mm
	Detect: 64 m (209 ft)
	Observe: 27 m (87 ft)
	Recognize: 13 m (42 ft)
	Identify: 6 m (21 ft)

	4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (109 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	Pan: 0° to 360°,
	Tilt: 0° to 85°
	Rotate: 0° to 360°
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 2
White LED	Range: 30m
Illuminator On/Off Control	Unified/ Scheduled/ Auto
VIDEO
Max. Resolution	2560 X 1440
Main Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution:
	2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution:
	2560x1440, 2304x1296, 2048x1280, 1920x1080
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Video Compression	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
Video Bit Rate	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Hang
Hangkommunikáció	Two-Way Audio
Hangbemenet	Yes
Hangkimenet	Yes
Hangtömörítés	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Hálózat
Szabvány	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	4 Main Streams & 3 Sub-Streams,
Simultaneous Live View	or 3 Main Streams & 5 Sub-Streams
Web Browser	Google Chrome® 57 and above
	Firefox® 52 and above
	Safari® 11 and above
	Microsoft® Edge 91 and above
Cloud	Yes
Biztonság	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Figyelmeztetési és eseménykezelési vezérlés
Smart Event	Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Fizikai kezelőfelület
Hálózati csatlakozás	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Gomb	-
Slot	Micro SD card
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Általános
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Tömeg	195 g
Csomagolás tartalma	VIGI Network Camera
	Quick Start Guide
	Screws and Anchors
	Mounting Template
Méret (Ma x Sz x Mé)	123 × 123 × 84 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements	12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Requirements	PoE (802.3af/at, class 0)
Net Weight	0.25 Kg
Gross Weight	0.4 Kg
Power Consumption	12V DC: Max 5.5W
Power Consumption	PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Supply	PoE (802.3af/at, class 0)
Protection	N/A
Product Dimensions (L x W x H)	123× 83× 123 mm
Certifications	CE, FCC, RCM, BSMI, VCCI, RoHS
Videó/Kép
Videó tömörítés	Main stream: H.265/H.264
Videó tömörítés	Sub-Stream: H.265/H.264
Kép frissítés (frame) és felbontás	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Kép frissítés (frame) és felbontás	Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240
Képbeállítás	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	64 Kbps to 6 Mbps
SMART FEATURE-SET
Smart Event	Area Intrusion Detection, Line-Crossing Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

Adatok

Gyártói cikkszám:

VIGI C440(4MM)

Garancia:

36 hónap

Max. LAN sebesség:

100

Kültéri kivitel:

Nincs

Lencse:

Beépített Infra led:

Van

IP kamera felbontás:

4MP

Tömörítés:

H265+, H265, H264+, H264

Kapcsolat típusa:

Vezetékes

H264+:

Van

H265:

Van

H265+:

Van

Beépített LED fény:

Van

Max. IR távolság:

Tömeg:

520 g/db
