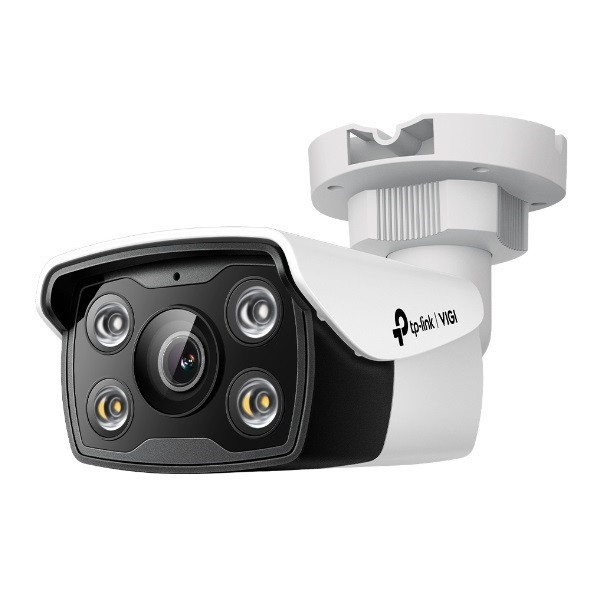

TP-Link IP csőkamera - C350 (FullColor, 5MP, 2,8mm, H265+, IP67, LED30m, IR30m, PoE/12VDC, SD, mikrofon, hangszóró)

47 590 Ft

TP-Link IP csőkamera - C350 (FullColor, 5MP, 2,8mm, H265+, IP67, LED30m, IR30m, PoE/12VDC, SD, mikrofon, hangszóró)

Raktáron

47 590 Ft

GYÁRTÓ:

TP-LINK

TÍPUS:

Cső

A vásárlás után járó pontok: 2 380 Ft

Részletek

Kamera
Képérzékelő	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Min. szükséges megvilágítás	0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm/4 mm/6 mm
Aperture	F1.6
FOV	2.8mm:
	Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°

	4mm:
	Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°

	6mm:
	Horizontal FOV: 56°, Vertical FOV: 30.5°, Diagonal FOV: 66°
Lens Mount	M12*P 0.5
DORI Distance	2.8 mm
	Detect: 63 m (206 ft)
	Observe: 26 m (85 ft)
	Recognize: 12 m (39 ft)
	Identify: 6 m (19 ft)

	4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (109 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)

	6 mm
	Detect: 120 m (393 ft)
	Observe: 50 m (164 ft)
	Recognize: 24 m (78 ft)
	Identify: 12 m (39 ft)
Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 2
White LED	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2880 X 1620
Main Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution:
	2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720

	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

	Resolution:
	704x576,640x480, 352x288, 320x240

	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Video Compression	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile?
H.265+	Main Stream Supported?
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps
Video Bit Rate	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB

	Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Hang
Hangkommunikáció	Two-Way Audio
Hangbemenet	Yes
Hangkimenet	Yes
Hangtömörítés	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Hálózat
Szabvány	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager
Web Browser	Google Chrome® 57 and above
	Firefox® 52 and above
	Safari® 11 and above
	Microsoft® Edge 91 and above
Cloud	Yes
Biztonság	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Figyelmeztetési és eseménykezelési vezérlés
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Face Capture	N/A
Face Comparison	N/A
Fizikai kezelőfelület
Hálózati csatlakozás	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Általános
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Csomagolás tartalma	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Material	Plastic
Power Supply	12V DC ± 5%, Max. 9 W, 5.5 mm Coaxial Power Plug
Power Supply	PoE: 802.3af/at, class 0, Max. 10.5 W
Protection	IP67
Product Dimensions (L x W x H)	78.42× 186.88× 71.55 mm
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC

Adatok

Gyártói cikkszám:

VIGI C350(2.8MM)

Garancia:

36 hónap

Max. LAN sebesség:

100

Kültéri kivitel:

Van

Lencse:

2,8

Beépített Infra led:

Van

BLC:

Van

WDR:

Van

Tápellátás:

12VDC / PoE

IP kamera felbontás:

5MP

CCD/CMOS:

1/2,7" CMOS

Tömörítés:

H265+, H265, H264+, H264

Kapcsolat típusa:

Vezetékes

SD kártya támogatás:

Van

H264+:

Van

H265:

Van

H265+:

Van

Beépített mikrofon:

Van

Riasztás ki/bemenet:

Nincs

Beépített LED fény:

Van

Max. IR távolság:

Írisz vezérlés:

Auto

Tömeg:

520 g/db
