Specification
Model
R-ASN4-BKNVMD-G
Application For
Intel: LGA2066/2011-v3/2011/1700/1200/1150/1151/1155
AMD: AM5/AM4
Product Dimensions
147×144×172 mm(L×W×H)

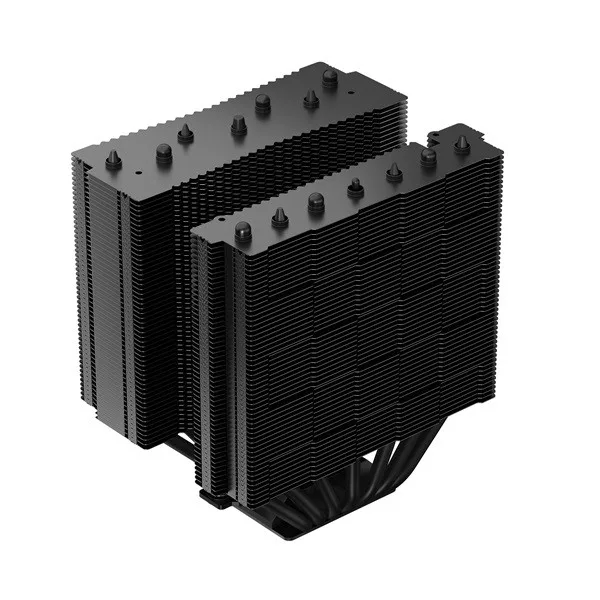

Heatsink Dimensions
140×110×160 mm(L×W×H)
Net Weight
1780 g

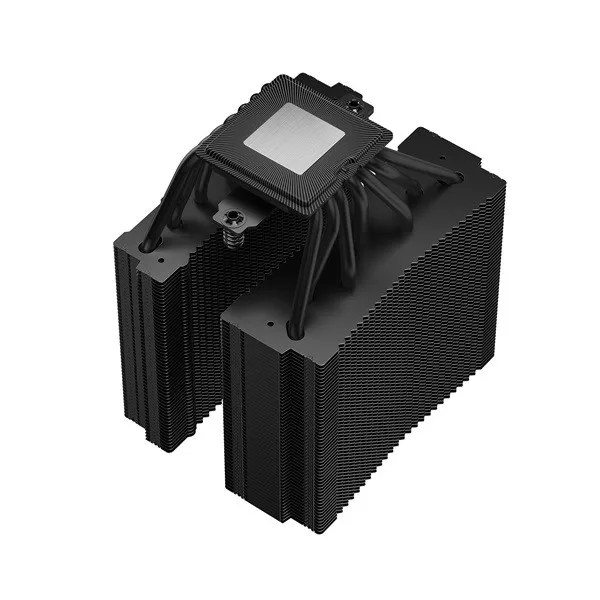

Heatpipe
O6 mm×7 pcs

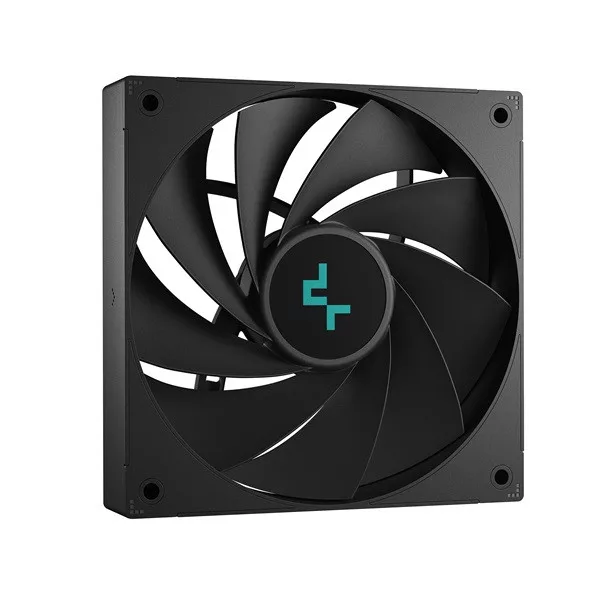

Fan Dimensions
140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)
Fan Speed (Performance Mode)
500~1800 RPM±10% / 500~1700 RPM±10%
Fan Airflow (Performance Mode)
61.25 CFM / 58.06 CFM
Fan Air Pressure (Performance Mode)
3.76 mmAq / 2.1 mmAq
Overall Noise (Performance Mode)
≤29.3 dB(A)
Fan Speed (Quiet Mode)
500~1450 RPM±10% / 500~1350 RPM±10%
Fan Airflow (Quiet Mode)
48.55 CFM / 46.75 CFM
Fan Air Pressure (Quiet Mode)
2.46 mmAq / 1.35 mmAq
Overall Noise (Quiet Mode)
≤22.6 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.2 A / 0.2 A
Fan Power Consumption
2.4 W / 2.4 W
Rated Voltage
Power Consumption (Performance Mode)
4.8 W
Power Consumption (Quiet Mode)
3.6 W
Display Module Rated Voltage
0.08 A±10%
Display Module Rated Current
5 VDC
Display Module Power Consumption
0.4 W

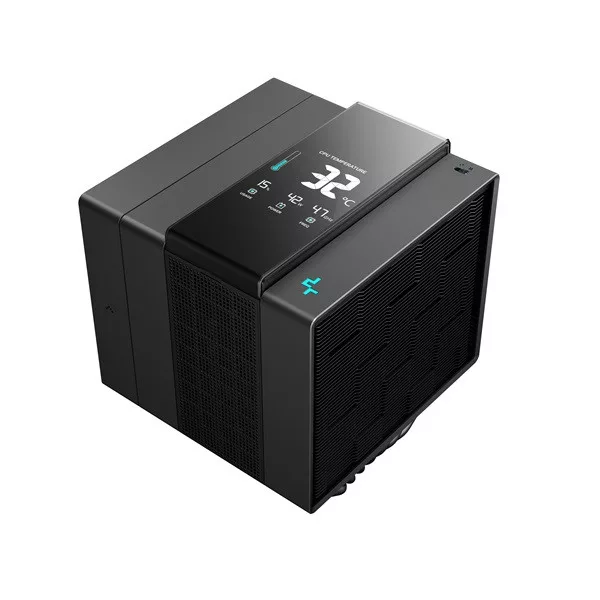

Display Area
44.6x53.6 mm
Warranty
6 Years
