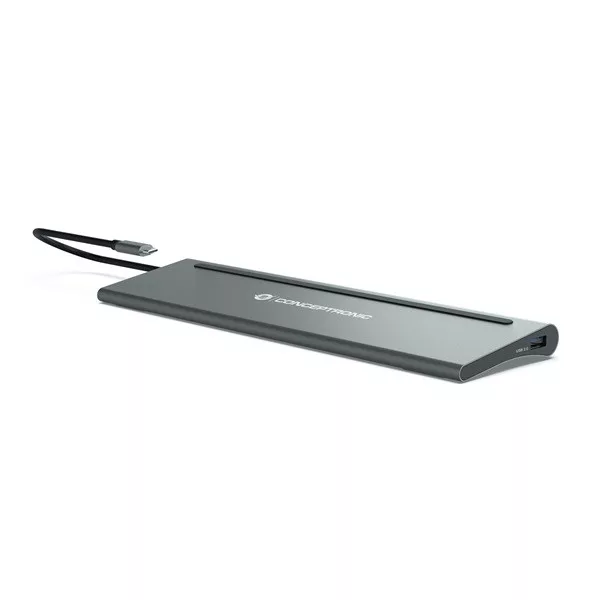

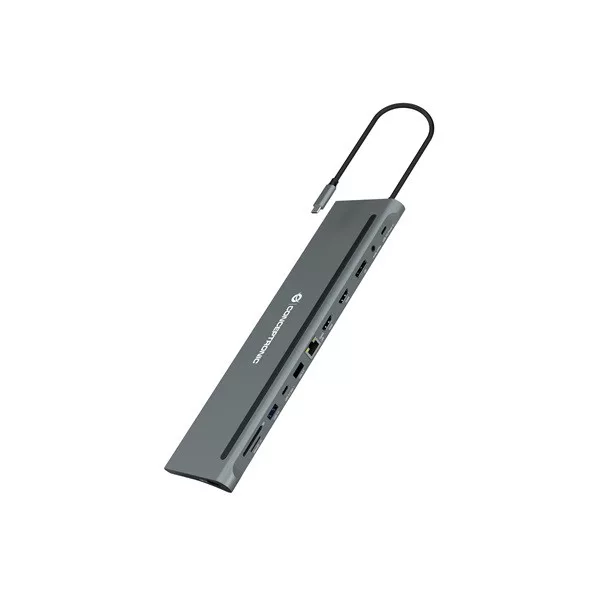

DONN17G 12-in-1 USB 3.2 Gen 1 Docking Station, MST for Windows, Triple 4K Display, USB PD, HDMI, DisplayPort, GbE, USB-A, USB-C, SD, TF/MicroSD, Audio
Model Number
DONN17G
SKU
110518707101
- 12-in-1 USB-C to HDMI/DisplayPort/USB-C PD/USB-C data/USB 3.0/USB 2.0/SD/TF/GbE/AUX multiport adapter
- Supports HDMI resolution up to 4K 60Hz
- Supports DisplayPort resolution up to 4K 60Hz
- Supports triple extended-mode displays (MST) on Windows
- Supports USB Power Delivery (PD) up to 100W
- Provides a Gigabit Ethernet port with speeds up to 1000Mbps
- Supports Wake-on-LAN feature to startup computers remotely
- USB 3.2 Gen 1 SuperSpeed (5Gb/s)
- Multi-platform support: Windows, macOS, ChromeOS
- Simple Plug and Play installation
- Cable length: 18cm
| Logistics data |
|
| Harmonized System (HS) code |
847180 |
| Customs product code (TARIC) |
8471800000 |
| Others |
|
| Operating temperature |
0°C ~ 45°C |
| Compatible operating systems |
Windows 10/11
MacOS 10.5 or above
Android 5.0 or above |
| Package Contents |
DONN17G
Multilingual quick installation guide |
| Physical Specifications |
|
| Dimensions (W x D x H) |
80 x 280 x 17 mm |
| Product weight (kg) |
0.232 |
| General |
|
| Color |
Grey |
| EAN |
4015867229545 |
| Model Number |
DONN17G |
| System specifications |
|
| USB Power Delivery (PD) |
PD 3.0 (100W) |
| DisplayPort version |
1.4 |
| HDMI version |
2.0 |
| USB Version (Speed) |
USB 3.2 Gen1 (5Gbps) |
| Connector |
USB-C male |
| Port Configuration |

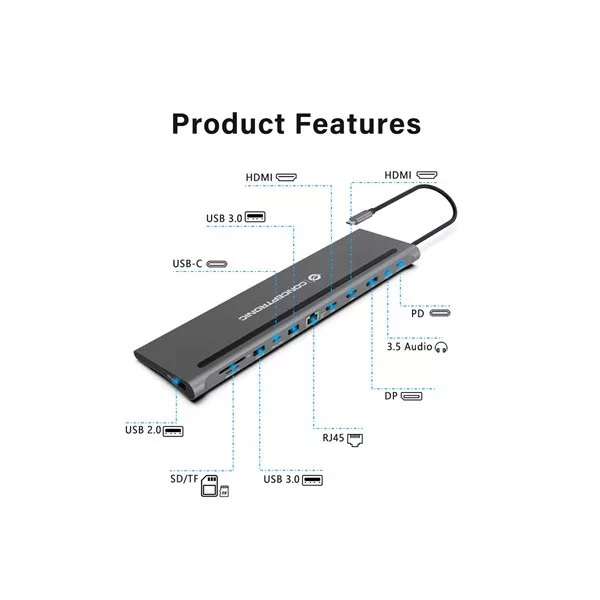

USB PD x 1, HDMI x 2, DisplayPort x 1, GbE x 1, USB-A 3.0 x 2, USB-A 2.0 x 1, USB-C 3.0 x 1, SD x 1, TF/MicroSD x 1, Audio x 1 |
| Power supply included |
No |
| Resolution |
4K 60Hz Single display, 4K 60Hz Dual display, 4K 30Hz Triple display |

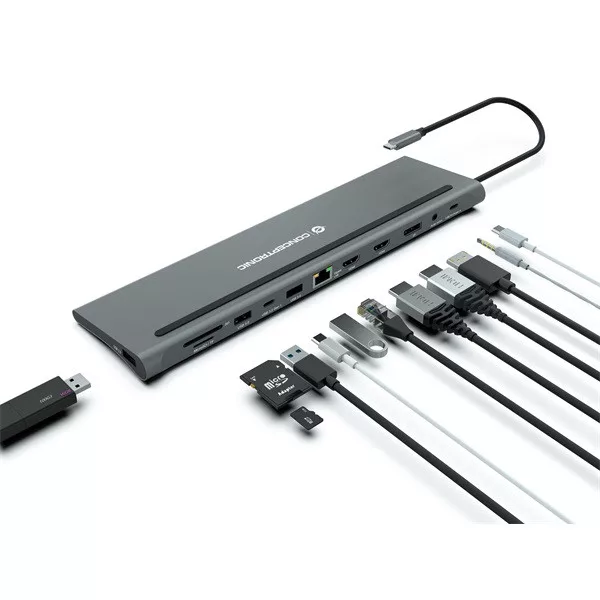

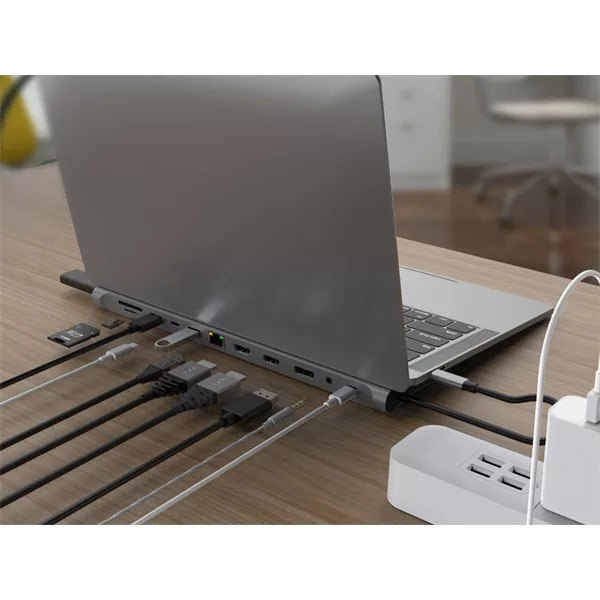

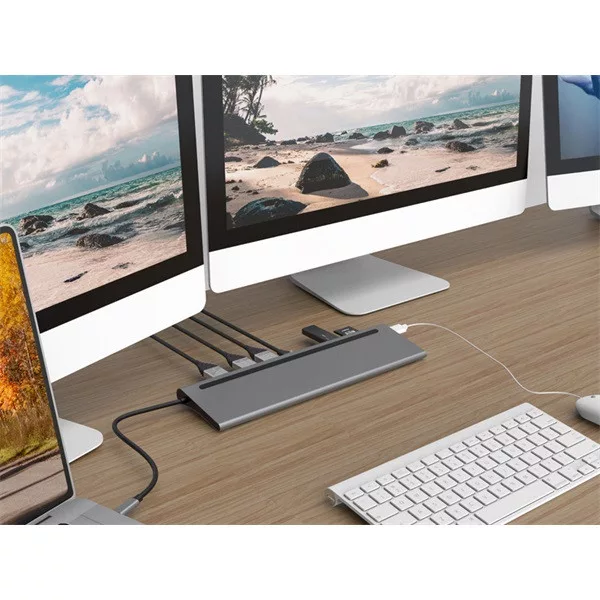

This 12-in-1 docking station makes it possible to expand your device’s USB Type-C capacity with HDMI/DisplayPort/USB-C PD/USB-C data/USB 3.0/USB 2.0/SD/TF/GbE/AUX ports. The adapter provides an easy way to add HDTV, or equipment such as a monitor or projector to any USB-C device such as a smartphone, portable gaming console, MacBook, Chromebook Pixel or any similar late-model laptop with USB-C ports. The multiport video adapter lets you mirror or extend content on three additional monitors simultaneously (2 x HDMI, 1 x DisplayPort), creating a triple-screen workstation. Perfect for home entertainment, office presentations and classroom teaching.
